At New River Kinematics (NRK), we are dedicated to the continuous development of our core metrology software package, SpatialAnalyzer® (SA). We pay close attention to our users' feedback and regularly incorporate user suggestions into new releases. In fact, you'll find that we never stop improving and enhancing SA. Read below for the latest updates and enhancements in SA Release 2016.02.18.

SA Release 2016.02.18

Click here to view this in pdf format.



Dynamic Callout Image Replacement

Callout Images can now be Dynamically Updated
Callout images can now be updated within SA reports easily and automatically. The refresh button has been enhanced to refresh all the callout view images in the report. You can also set callout images to refresh automatically when you open a report. Individual Callout images can also be locked if you wish to save previous views. These optional controls have been added to the Report Settings Dialog.



Callout Images Maintain Proportions within Report
One challenge in updating callout images is that when the size of the graphics window changes, so do the callout image proportions. Callout images can now be added to a report and refreshed without fear of changing the proportions of those images, making it easier to place labels exactly where desired.



New Image Callout Added
This new callout type allows you to add an image as an overlay directly within the SA graphics. This can be very useful in prompting operators during a measurement process with visual aids.



Tolerances and Color Controls Added to Vector Callouts
Vector Callouts can now have the vector name colorized to match the vector color, helping to identify which vector is being referenced. Also, tolerances can be shown numerically in the callout and the distance
out of tolerance shown in either of two color schemes.



Cardinal Points Can Now be Used for Instrument Alignment

The Cardinal Points built from Geometry Relationships can now be used directly for instrument alignment. As long as all the measured points used to build a feature were measured from a single instrument, the cardinal points are automatically associated with that instrument. This allows SA to treat these points as measured points
from that instrument in alignment operations.



Enable Trapping Vectors

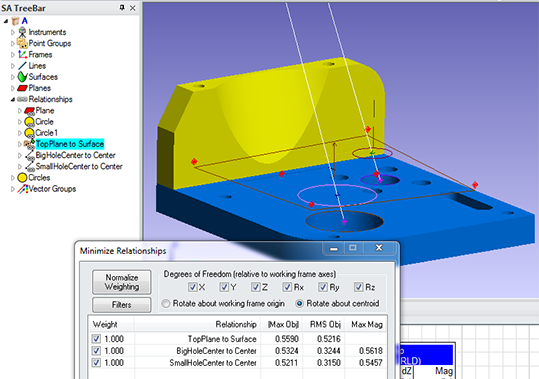

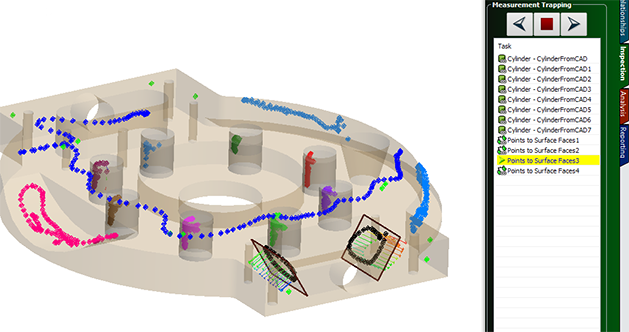

A new function has been added to the Relationship Category in the tree that allows you to display the auto-vectors for any relationship currently set as the active trapping target. A placeholder vector group will be built and updated with each relationship that is selected unless an auto-vector groups has already been built. In that case, the existing vector group will be displayed and then hidden when you move to the next relationship.


Right-Click Menu Icons have been Added

A selection of commonly used functions in object right-click menus now have icons. This was added to make it easier to fi nd items in the ever expanding right-click menus.


Objects from CAD Toolkit Menu Expanded for Offset Points

The point construction options have been expanded to include both surface points and vertex points as well as hole center points in the objects from CAD menu. Off sets can now be added to both surface points and hole center points through the toolkit menu. These shifted points allow direct comparison with measurements that contain off-sets.



Reporting Frames Enhancements

GD&T Feature Checks now have Reporting Frames
Each individual feature check can now have a reporting frame assigned to it. This makes it easier to report the XYZ deviations relative to a nominal feature.



Objects can be used Directly as Reporting Frames
Any object can now be used as a reporting frame for another object or point group. This makes it easy to see the deviations between nominal and measured features. It also makes it quick and easy to see points in cylindrical/spherical coordinates relative to a particular circle or cylinder, for example.



Added Support for the Leica Absolute Scanner (LAS) 20-8

The LAS scanner is the fi rst scanner to be added as part of a Tracker Interface and can be run directly as a custom target. It requires the installation of a new RDS version available on our website and a Tracker
firmware update. An instrument Quick-Start guide can be found in the Measuring with Laser Trackers Chapter.



6D Targets now Include Default Offsets

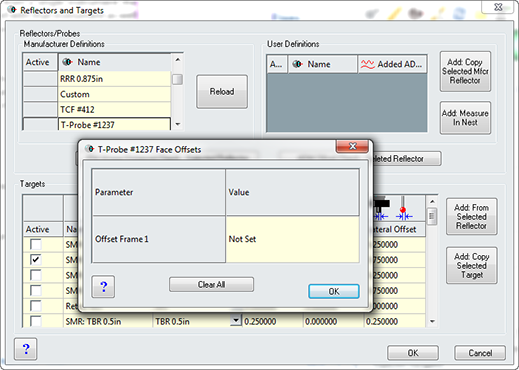

If you have a multi-faced target that you need to calibrate or if you would like to have a default off set always included in a 6D target, you can now defi ne these off sets directly within the Refl ectors and Targets Database.



MP Improvements

Angular representation in MP has been improved
Angular representation settings of 0/360 or 180/-180 now apply to MP commands as well.

New MP editor has been improved
Search plane can now be sized in the MP Editor.



New MP Commands

OPC DA Server



Construction Operations>Other MP Types...

Analysis Operations



Relationship Operations



Reporting Operations



Instrument Operations



Utility Operations
