At New River Kinematics (NRK), we are dedicated to the continuous development of our core metrology software package, SpatialAnalyzer® (SA). We pay close attention to our users' feedback and regularly incorporate user suggestions into new releases. In fact, you'll find that we never stop improving and enhancing SA. Read below for the latest updates and enhancements in SA Release 2015.07.28.

SA Release 2015.07.28

Click here to view this in pdf format.



Relationship Enhancements

Auto Vectors

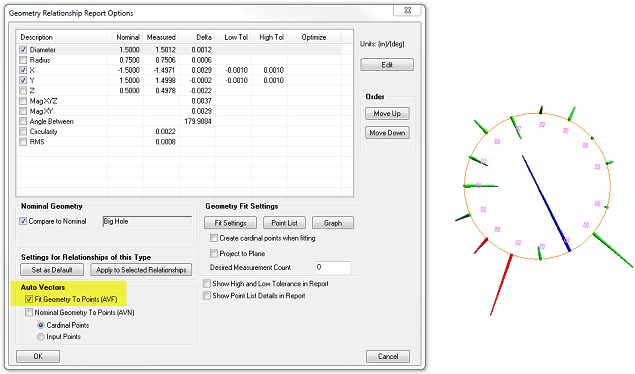

Users may now activate auto vectors to display the deviation of individual measurements to their fit geometry. The abbreviation AVF refers to Auto Vector Fit.

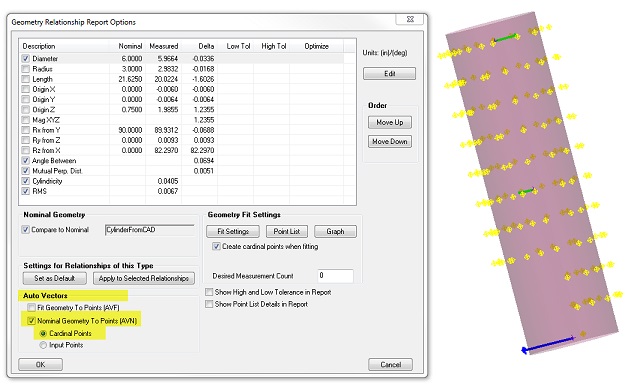

Auto vectors may also be activated to display the deviation between cardinal points of the measured feature to the nominal:



or between input points (compensated measurements) to the nominal geometry:



The abbreviation AVN refers to Auto Vector Nominal.



Normalize Weighting Options

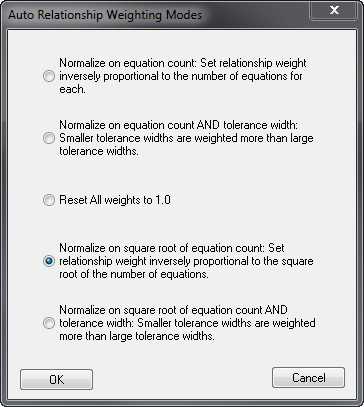

Two new relationship weighting options have been added for relationship fitting. They use the inverse of the square root(N) where N equals the number of equations for relationship fit computation.





Average Point

Capability has been added to rename the average point and collect multiple average points in the same group.



The Apply to Selected Relationship option in the Average Point Relationship Properties dialog has been added.



Added Sweep + Move operation support in both the Copy and Move modes to preserve the same average point group/target name as it was defined in the source relationship.



Leica Automation Interface Driver

Added a Measure button for TMAC mode. This will send a measurement (at the probe tip center, if one is attached) to SA.



The Record button for the AT960 in the AIC will send the reflector center location for a subsequent beam reset command from MP.



New Measurement Plan Commands



Utility Operations



Construction Operations



Instrument Operations (PCMM)



Click here to view this in pdf format.



Interested in learning more about SA? We regularly update the SA User Manual (which is installed when you install SA) to reflect the most recent updates and changes to SA. Click here for the download page.
