Be sure to check out the latest SA production release! SA 2010.03.08

For more information on what's new in this release, view the readme file on the Downloads page.

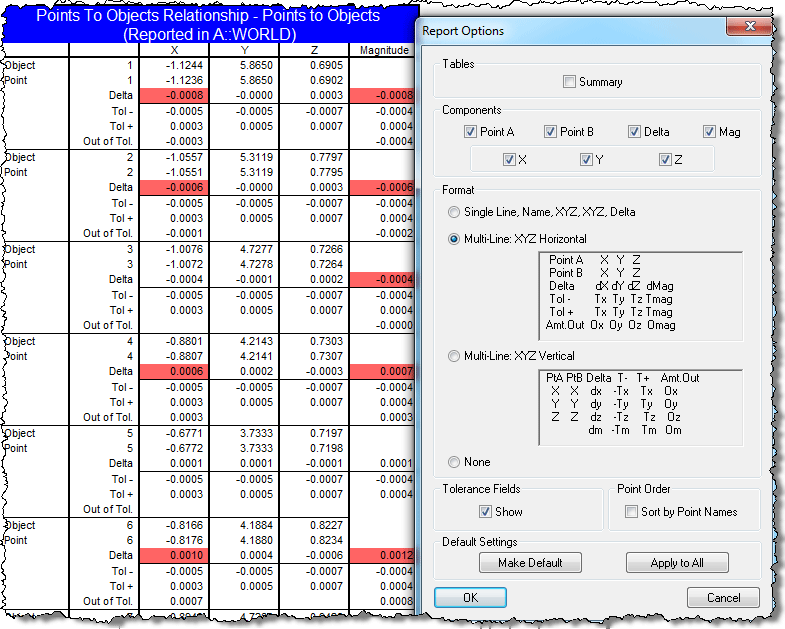

Points to Objects Reporting

The reporting options for Points to Objects relationships now matches that of Group to Group relationships.  You can report nominal (projected) and measured values, as well as control the components to display and the reporting format.

New Default Hotkeys Added

Edit > Delete Points can now be accessed using Alt-D.

View > Show Point Labels can now be accessed using Alt-L.

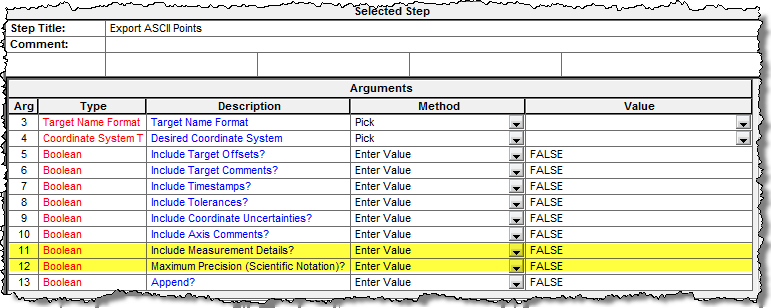

Measurement Plans: ASCII Export Options Added

Two new options have been added to the Export ASCII Points MP command.  Include Measurement Details allows you to export the measurement metadata associated with the most recent observation for a point, and Maximum Precision allows you to export the point coordinates using full internal (approximately 15-digit) precision.

HandyProbe Interface Additions

The Creaform HandyProbe interface now has the ability to stream data to SA, so that watch windows can be established to watch current probe position without requiring explicit measurements to be taken.  An interface docking button, group/target increment/decrement button, and probe/camera models have been added as well.

Import/Export Transformation Matrices

Transformation matrices can now be imported from and exported to .CSV files:

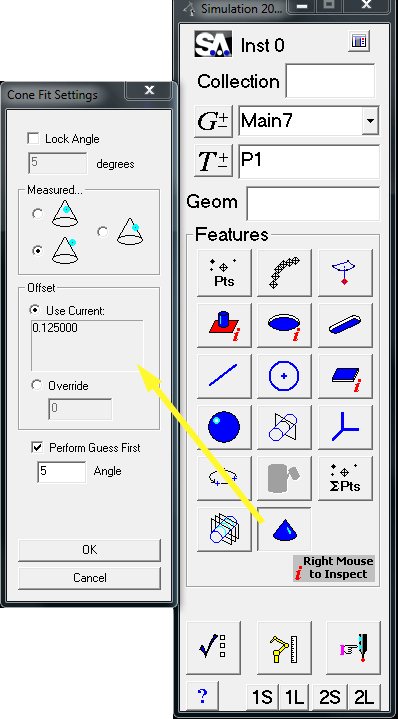

Cone Fit Added to Arm Interface

Cone fitting functionality has been added to the PCMM arm interface.  Right-click on the cone to change the settings for the fit.

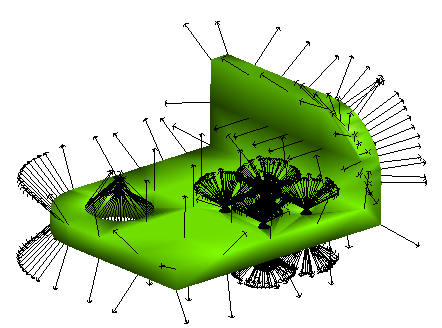

Command Added: Construct > Vector Group > From Polygonized Surface Normals

You can now construct a vector group based on the surface normals of a polygonized surface.  This allows you to determine whether the surface normals for the surface are facing in the direction that you expect.

Other Enhancements and Changes

Refer to the Read Me file for additional enhancements and changes.

Documentation Build: 2010-03-08
